Visual inspection (VI) is a non-destructive examination (NDE) method that uses the human eye to inspect the surface and subsurface of a material or component. It is one of the most basic and widely used NDE methods and it can be used to detect a wide range of defects, such as cracks, corrosion, surface discontinuities, and other surface anomalies.

During a visual inspection, the inspector will typically use a variety of tools such as magnifying glasses, borescopes, and fiberscopes to examine the surface of the material or component. The inspector will also use lighting and other techniques to enhance visibility and make it easier to detect defects.

Visual inspection can be performed on a wide range of materials and components, including metals, plastics, ceramics, and composites. It is commonly used in industries such as aerospace, construction, manufacturing, oil and gas, and power generation.

Visual inspection is a relatively simple and inexpensive method, and it can be performed by trained technicians and operators with minimal equipment. However, the accuracy of the inspection is highly dependent on the skill and experience of the inspector, and it may not be able to detect certain types of subsurface defects or very small surface defects.

Penetrant Testing (PT), also known as liquid penetrant inspection (LPI) is a non-destructive examination (NDE) method that is used to detect surface breaking defects in a wide range of materials, such as metals, plastics, ceramics and composites. The basic principle of PT is to apply a liquid penetrant to the surface of the material being inspected, which will then seep into any defects present, such as cracks, porosity, laps, seams, etc. The excess penetrant is then removed, and a developer is applied which will draw the penetrant out of the defects, making them visible.

There are two main types of penetrant testing: visible and fluorescent. In visible penetrant testing, the penetrant is a colored liquid that is applied to the surface of the material, and it will show up as a contrast against the developer. In fluorescent penetrant testing, the penetrant is a liquid that is applied to the surface of the material, and it will fluoresce under ultraviolet light, making the defects visible.

PT is commonly used in industries such as aerospace, construction, manufacturing, oil and gas, and power generation, as well as in many other applications where surface defects are important. It is relatively simple and inexpensive method, and it can be performed by trained technicians and operators with minimal equipment. However, it may not be able to detect certain types of subsurface defects or very small surface defects, and it is also limited to surface breaking defects only.

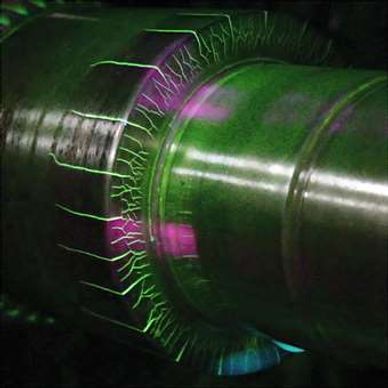

Magnetic particle inspection (MPI) is a non-destructive examination (NDE) method that uses magnetic fields to detect surface and subsurface defects in ferromagnetic materials, such as iron and steel. It is a widely used method for detecting cracks, laps, seams, and other surface and subsurface discontinuities.

The basic principle of MPI is to magnetize the material being inspected and then use a magnetic field to induce a current in any defects present. These defects will then create their own magnetic field, which can be detected using a magnetic particle indicator (MPI) or yoke.

There are two main methods of magnetic particle inspection: dry powder and wet method. In the dry powder method, a dry powder, such as iron oxide, is applied to the surface of the material being inspected. In the wet method, a suspension of magnetic particles, such as iron oxide, is applied to the surface of the material. The particles will then be attracted to the areas of the material that have defects, making them visible.

MPI is commonly used in industries such as aerospace, construction, manufacturing, oil and gas, and power generation. It is a relatively simple and inexpensive method and it can be performed by trained technicians and operators with minimal equipment. However, it can only be used on ferromagnetic materials and it may not be able to detect certain types of subsurface defects or very small surface defects.

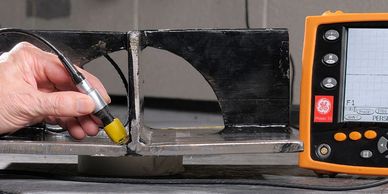

Ultrasonic thickness inspection (UT) is a non-destructive examination (NDE) method that uses ultrasonic waves to measure the thickness of a material. It is commonly used to measure the thickness of metal and other solid materials, such as plastics, ceramics, and composites.

The basic principle of UT is to send an ultrasonic pulse through the material being inspected and then measure the time it takes for the pulse to travel through the material and be reflected back. The thickness of the material can then be calculated using the speed of sound in the material and the time of flight of the pulse.

There are two main methods of ultrasonic thickness inspection: pulse-echo and through-transmission. In the pulse-echo method, the ultrasonic pulse is sent through the material and reflected back by the opposite surface. In the through-transmission method, the ultrasonic pulse is sent through the material and received on the opposite side.

UT is commonly used in industries such as aerospace, construction, manufacturing, oil and gas, and power generation. It is a relatively simple and inexpensive method and it can be performed by trained technicians and operators with minimal equipment. However, it may not be able to detect certain types of defects, such as subsurface defects, and the accuracy of the inspection is highly dependent on the skill and experience of the operator, as well as the condition of the material being inspected.

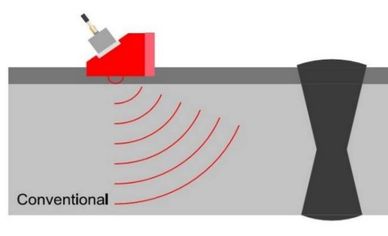

Ultrasonic Shearwave inspection (USW) is a non-destructive examination (NDE) method that uses ultrasonic waves to detect and locate subsurface defects in materials, such as metals and composites. Shearwave inspection is a type of ultrasonic testing that uses shearwaves to detect internal defects in materials.

The basic principle of USW is to generate shearwaves by using a transducer that can produce a longitudinal wave and a shear wave. Shear waves are waves that travel through a material parallel to the surface, and they are sensitive to defects that lie perpendicular to the direction of the wave propagation. By measuring the time of flight of the shearwave and the amplitude, it can be used to detect and locate internal defects, such as cracks, laps, seams and other subsurface discontinuities.

USW is commonly used in industries such as aerospace, construction, manufacturing, oil and gas, and power generation, as well as in thickness measurements, corrosion mapping, and material characterization. It can detect defects in complex geometries and it is not affected by surface finish. Shearwave inspection is considered a more advanced method than pulse-echo, as it can detect defects that are not visible with pulse-echo techniques, and it can provide more detailed information about the defects. However, it requires more specialized equipment, and the results are highly dependent on the skill and experience of the operator.

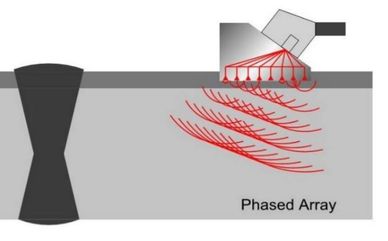

Phased array ultrasonic testing (PAUT) is a non-destructive examination (NDE) method that uses ultrasonic waves to detect and locate subsurface defects in materials, such as metals and composites. It is an advanced form of ultrasonic testing that uses a phased array probe, which is a specialized transducer that can produce and steer multiple ultrasonic beams simultaneously.

The basic principle of PAUT is to generate multiple ultrasonic beams at different angles and frequencies using the phased array probe. By adjusting the time delay and amplitude of the waves, the ultrasonic beams can be focused and steered in specific directions. By scanning the probe across the surface of the material being inspected, the ultrasonic beams can be used to create a "virtual" cross-sectional image of the material, which can be used to detect and locate internal defects.

PAUT is commonly used in industries such as aerospace, construction, manufacturing, oil and gas, and power generation, it is particularly useful for inspecting complex geometries and for detecting defects in materials that are difficult to inspect using conventional ultrasonic testing methods. It can also be used to perform advanced measurements such as material characterization, thickness mapping, and full matrix capture (FMC) imaging. However, it requires more specialized equipment and skilled personnel to operate and interpret the results.

TFM stands for Total Focusing Method which is a form of phased array ultrasonic testing (PAUT) that is used to inspect the entire cross-section of a material in a single scan. It is an advanced method of ultrasonic testing that uses a phased array probe and a specialized data acquisition and analysis software.

The basic principle of TFM is to use the phased array probe to generate multiple ultrasonic beams at different angles and frequencies, which are then focused and steered to create a "virtual" cross-sectional image of the material. The software then uses this image to generate a "total focusing" image, which displays the entire cross-section of the material, including the internal structure and any defects that may be present.

TFM is commonly used in industries such as aerospace, construction, manufacturing, oil and gas, and power generation, it is particularly useful for inspecting complex geometries and for detecting defects in materials that are difficult to inspect using conventional ultrasonic testing methods. It can also be used to perform advanced measurements such as material characterization, thickness mapping, and full matrix capture (FMC) imaging. However, it requires more specialized equipment and skilled personnel to operate and interpret the results.

Eddy current testing (ECT) is a non-destructive examination (NDE) method that uses electromagnetic induction to detect and locate subsurface defects in conductive materials, such as metals. The basic principle of ECT is to apply an alternating current (AC) to a coil, which generates an electromagnetic field around the coil. When the coil is brought into close proximity to a conductive material, eddy currents are induced in the material, which in turn generate their own electromagnetic field. The interaction between the electromagnetic field generated by the coil and the eddy currents in the material can be used to detect and locate subsurface defects, such as cracks, laps, and other discontinuities.

Eddy current testing can be used to inspect a wide range of materials, including both ferromagnetic and non-ferromagnetic metals, as well as non-metallic materials such as ceramics and composites. It is commonly used in industries such as aerospace, construction, manufacturing, oil and gas, and power generation, as well as in many other applications where subsurface defects are important. It is relatively simple and inexpensive method, and it can be performed by trained technicians and operators with minimal equipment. However, it is limited to conductive materials only and it is sensitive to surface conditions and the material's properties.

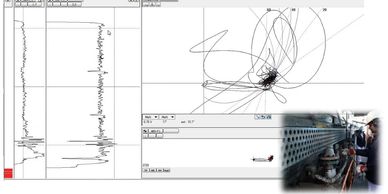

Eddy current testing (ECT) can also be used to inspect tubing, which is a common application in industries such as oil and gas, power generation and aerospace. In this method, an eddy current probe is inserted inside the tubing, and the probe generates an electromagnetic field which induces eddy currents in the material. The interaction between the electromagnetic field and the eddy currents can be used to detect and locate subsurface defects, such as corrosion, pitting and cracks.

Eddy current tubing inspection is a highly effective method for detecting and locating defects in tubing, especially in hard-to-reach areas such as inside of heat exchangers, boilers and other pressure vessels. It is also widely used for detecting corrosion and pitting in tubing systems. The method is non-destructive, which means that the tubing does not need to be taken out of service for inspection, and the inspection process is usually quick and efficient.

Eddy Current tubing inspection is performed by specially designed probes which are inserted into the tubing, the probe can be rotated to cover the entire circumference of the tubing, and it can be adjusted to cover different depths of the wall thickness. The inspection results are interpreted by skilled technicians and operators, who use specialized software and data analysis to generate detailed images and reports of the condition of the tubing. However, it is limited to conductive materials only and it is sensitive to surface conditions and the material's properties.

Pulsed Eddy Current (PEC) is also used for the detection of Corrosion Under Insulation (CUI) in pipelines, tanks and other equipment in various industries. CUI is a common problem in many industrial facilities, as it can lead to leaks and other serious issues if left unaddressed. PEC can detect the corrosion under insulation by using a pulsed eddy current probe to generate an electromagnetic field that penetrates the insulation and is affected by any corrosion present.

PEC is a non-destructive method, which means it doesn't damage the insulation or the equipment and can be done while the equipment is in operation. It can be used to inspect large areas quickly and efficiently, but can not distinguish between external or internal corrosion

Radiation safety, also known as radiological safety or rad safe, refers to the set of measures and protocols that are put in place to protect individuals and the environment from the harmful effects of ionizing radiation. Ionizing radiation can come from a variety of sources, such as X-rays, nuclear medicine, and radioactive materials used in research and industry.

Radiation safety measures include the use of protective equipment, such as lead aprons and gloves, as well as the proper handling and disposal of radioactive materials. Additionally, radiation safety protocols often include procedures for emergency response and evacuation, in case of an accidental release of radioactive materials.

Individuals who work with radioactive materials, such as nuclear power plant operators, medical professionals, and researchers, are typically required to complete radiation safety training and be certified by regulatory bodies such as the Nuclear Regulatory Commission (NRC) in the United States. This training covers topics such as the properties and effects of ionizing radiation, the proper use of protective equipment, and emergency response procedures.

The main goal of radiation safety is to minimize the exposure of individuals to ionizing radiation and to prevent the release of radioactive materials into the environment. This can be achieved by proper handling, storage and disposal of radioactive materials, as well as by implementing safety protocols and procedures to protect workers, the public and the environment from the harmful effects of ionizing radiation.

RT stands for radiographic testing (RT) which is a type of non-destructive examination (NDE) method used to detect and locate subsurface defects in materials such as metals, ceramics, and composites.

Radiographic testing uses X-rays or gamma rays to produce a two-dimensional image of the internal structure of a material. The X-rays or gamma rays penetrate the material and are absorbed or scattered by the internal structure. The amount of radiation that passes through the material is captured by a film or detector and produces an image of the internal structure. The image can be used to identify the defects, such as cracks, voids, porosity, or inclusions.

Radiographic testing is commonly used in industries such as aerospace, construction, manufacturing, oil and gas, and power generation. It is particularly useful for inspecting large, complex structures, such as aircraft components and large pipelines, as well as in the aerospace, power generation, and petrochemical industries. Radiographic testing requires specialized equipment and skilled personnel to operate and interpret the results.

It is important to note that radiographic testing involves ionizing radiation and thus, it is a regulated procedure that requires safety measures and trained professionals to ensure safety of personnel and the public.
